◆ Low-pressure pressure gauge (supply pump pressure) : When the supply pressure is lower than 1.2bar, clean the supply pump (ACP-1100MF); The reduction in the efficiency of the scroll filter is the cause of equipment failure

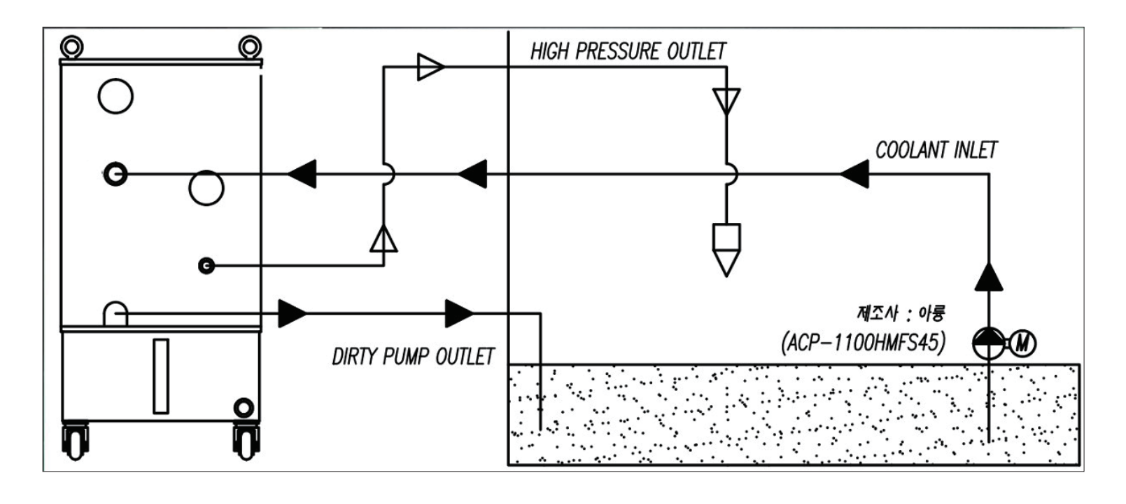

◆ Supply pump Interface 1 ": Connected to the supply pump ACP-1100MF
◆ Sewage pump outlet 1 ": Discharge the sediment separated by the scroll filter & sewage line, connected to the chip conveyor or water tank
◆ Sewage tank level gauge
◆ Drainage outlet of the sewage tank
◆ High-voltage outlet: PT 3/8"
◆ High-pressure pressure gauge
Junction BOX (CONTROL BOX)
◆ CABLE INLET HOLE
Clean the water tank level gauge
Clean the drain outlet of the water tank
Central water outlet precautions:
For the first use, inject oil through the oil filling port to reach more than two-thirds of the position of the liquid level gauge
◆ Please use water-soluble cutting fluid
Check the rotation directions of the high-pressure water outlet motor and the sewage recovery motor
When the output pressure of the high-pressure pump reaches the maximum, the tool diameter is &1.0*1
According to the usage of the equipment, the suction inlet filter screen should be disassembled and cleaned every two months
When the pressure at the water inlet is lower than 1KG, check whether the supply pump is blocked and whether the water tank of the machine tool is short of water
◆ For the pressure detection at the water inlet and outlet and the detection of high and low liquid levels, do not cover them
Please start and stop the three pumps, namely the external supply pump, the high-pressure outlet pump and the sewage recovery pump, simultaneously
◆ The water tank of the machine tool should not be short of water. Water shortage causes the scroll filter to completely lose its effect. Most impurities enter the clean water tank, the suction inlet of the screw pump is blocked, and the empty suction pump is prone to damage
